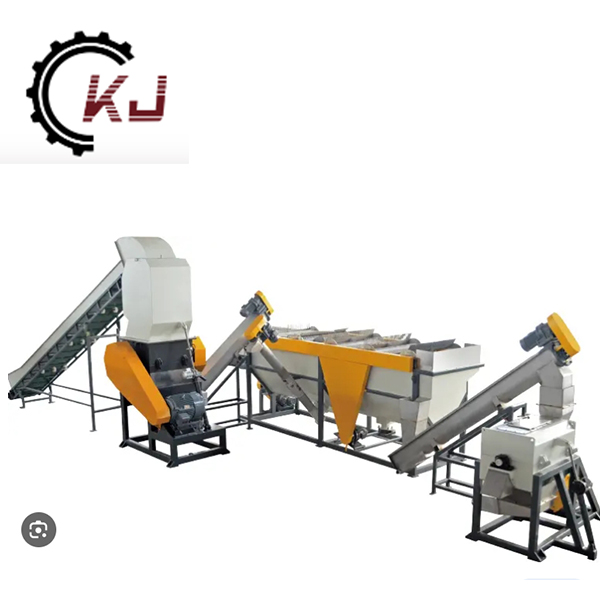

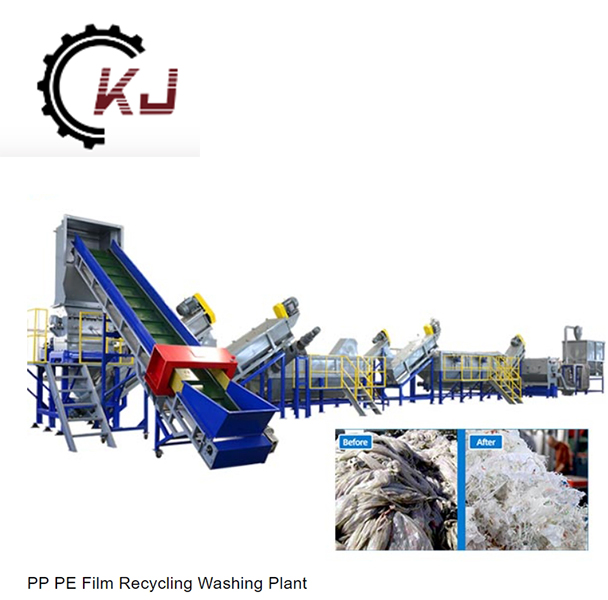

HDPE PP PE Bag Film Crushing Washing Machine
It appears that you are describing a recycling production line specifically designed for processing waste plastic materials, including HDPE, PP, and PE bags and films.
Kangju's HDPE PP PE Bag Film Crushing Washing Machine commonly encompasses multiple steps to transform plastic waste into reusable materials. Here's a general outline of the process typically followed in this type of machine:
Sorting and Shredding: The initial step involves sorting the waste plastic materials by type (HDPE, PP, PE) and color, followed by shredding them into smaller fragments in preparation for washing.
Cleaning and Washing: These shredded plastic fragments undergo a thorough cleaning process to eliminate contaminants like dirt, stickers, and other impurities, priming them for subsequent stages.
Dehydration: Once washed, the plastic pieces are dehydrated to remove any lingering moisture before progressing to the next phase of the recycling workflow.
Fusion and Extrusion: The dehydrated plastic fragments are then melted and extruded into pellet or granule form, transforming the waste plastic into a reusable format suitable for manufacturing new items.
Quality Assurance: Throughout the entire production process, rigorous quality checks are conducted to guarantee that the recycled plastic material adheres to the necessary reuse standards.
Packaging and Dispatch: The recycled plastic pellets or granules are packaged and distributed to manufacturers, who can then incorporate them as raw materials in the production of fresh plastic goods.
It's crucial to remember that each recycling line may differ depending on the equipment, operational scale, and quality benchmarks set for the recycled materials. Moreover, sustainable waste management practices and environmental impact considerations should underlie every step of the recycling process.
Main machine list
name | (kilowatt)Motor Power | (mm)size | (T/H)Water Consumption | (mm)stainless steel standard | electrical standards |
Belt conveyor | 1.5kW | 4000*600*2100mm | - | - | According to customer's standards |
Crusher | 37kW | 1800*1500*3000mm | 0.6-1.0 | - | |
spiral charger | 1.5kW | 3300*420*1600mm | - | 3-5 | |
Belt conveyor | 1.5kW | 4000*600*2100mm | - | - | |
Crusher | 37kW | 1800*1500*3000mm | 0.6-1.0 | - | |
spiral charger | 1.5kW | 3300*420*1600mm | - | 3-5 | |
floating sink | 2.2*2KW | 6000*1250*1700mm | 4-5 | 3-5 | |
spiral charger | 1.5kW | 3000*420*1450mm | - | 3-5 | |
High speed friction washing machine | 22kW | 3200*1200*1800mm | 1-2 | 3-5 | |
spiral charger | 1.5kW | 3000*420*1460mm | - | 3-5 | |
Dehydrator | 45kW | 1750*1420*1770mm | - | 5 | |
Drying system-1 | 28kW | 3700*1000*2000mm | - | 3-5 | |
Transitional storage | - | 1200*1000*3000mm | - | - | |
Drying system-2 | 28kW | 3700*1000*2000mm | - | 3-5 | |
Storage hopper | 2.2kW | 3700*1500*3500mm | - | - | |
Electrical cabinet | - | 2000*450*1780mm | - | - |
