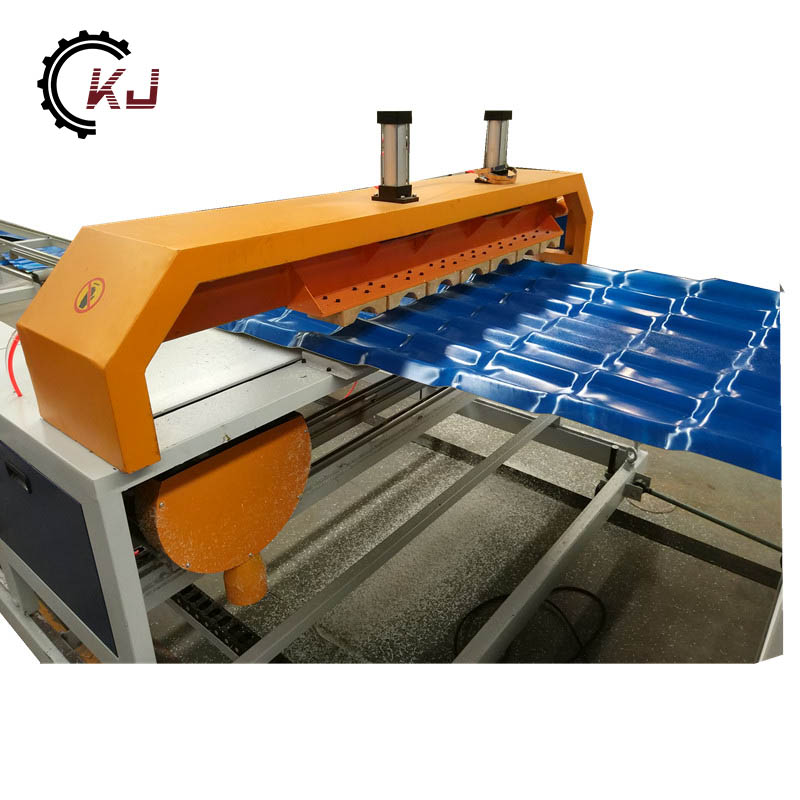

PVC Hollow Roof Tile Making Machine

Kangju Manufacturer's PVC Hollow Roof Tile Making Machine is primarily utilized for the production of plastic glazed tiles, which are extensively employed in various settings such as garden-style factories, tourist attractions, pavilions, hotels, and residential buildings.

Send Inquiry

Product Description

PVC Hollow Roof Tile Making Machine Manufacturers and Suppliers

PVC Roof Tile Extrusion Machine Line

Main technical parameter:

Products width (mm)

Products thickness (mm)

Extruder machine

Max. output (kg/h)

880

2-4

SJSZ-80/156

FSJ-45/28

400kg/h

1040

2-4

SJSZ-80/156

FSJ-50/28

450kg/h

Working Flow:

Main extruder machine →Conical twin screw extruder machine → Mould → Forming machine→ Embossing machine → Cutting machine。

PVC Hollow Roof Tile Making Machine Applications

The PVC Hollow Roof Tile Making Machine is mainly used in the production of plastic glazed tile.The plastic glazed tiles are widely used in the garden-style factory,tourist scenic spots, pavilions,hotels,family building, etc.

PVC Roof Tile Extrusion Machine Line

Product Flows

High speed mixer---conical twin screw extruder---co-extruder---co-extrusion die head---embossing and cooling rollers---forming machine---saw cutting machine---stacker---pneumatic pressing machine for ridge tiles moulds.

Configuration

No.	Machine	Quantity
1	Screw loader	1 set
2	SJZ80/156 conical twin-screw extruder	1 set
3	SJ65/35 single screw co-extruder	1 set
4	Extrusion mould and flow distributor	1 set
5	Embossing roller	1 set
6	Side cutter	1 set
7	Glazed-tile forming machine	1 set
8	Cutter	1 set
9	Stacker	1 set

Auxiliary Machines

No.	Machine	Quantity
1	Mould: Main rigde tile; Oblique ridge tile; T cock; Tile end	4set
2	Pressing machine and oven	2set
3	SRL-Z500/1000 Mixing unit	1set
4	Screw loader	1set
5	SWP360 Crusher	1set
6	SMP600 Miller	1set

Sheet Specification

1. Width: 720, 880, 1040mm

2. Thickness: 1-4mm

3. Can be co-exrtusion ABA, AB, ABC

4. ASA or PMMA co-extrusion

Features of this tile:

1. Superb weather resistance;

2. Remarkable waterproofing capabilities;

3. Resistant to wind and quakes;

4. Vibrant and personalized colors, with lasting stability;

5. Impressive fireproof qualities;

6. Effective heat insulation and preservation;

7. Excellent sound insulation;

8. Remarkable durability and strength;

9. Straightforward construction process – swift paving with minimal costs;

10. Cost-effective.

Structure	Single layer	Double layers	Three layers
Suitable material	U-PVC	ASA/PMMA+UPVC	UPVC+UPVC foam +UPVC
Product width	720-1130mm	720-1130mm	720-1130mm
Product thickness	0.8-3.0mm	2.5-3.0mm	2.5-3.0mm
Extruder model	SJZ80/156	SJ50/30+ SJZ80/156	SJ50/105+ SJZ65/132+SJZ51/105
Designed capacity	300kg/h	350-400kg/h	350-400kg/h
