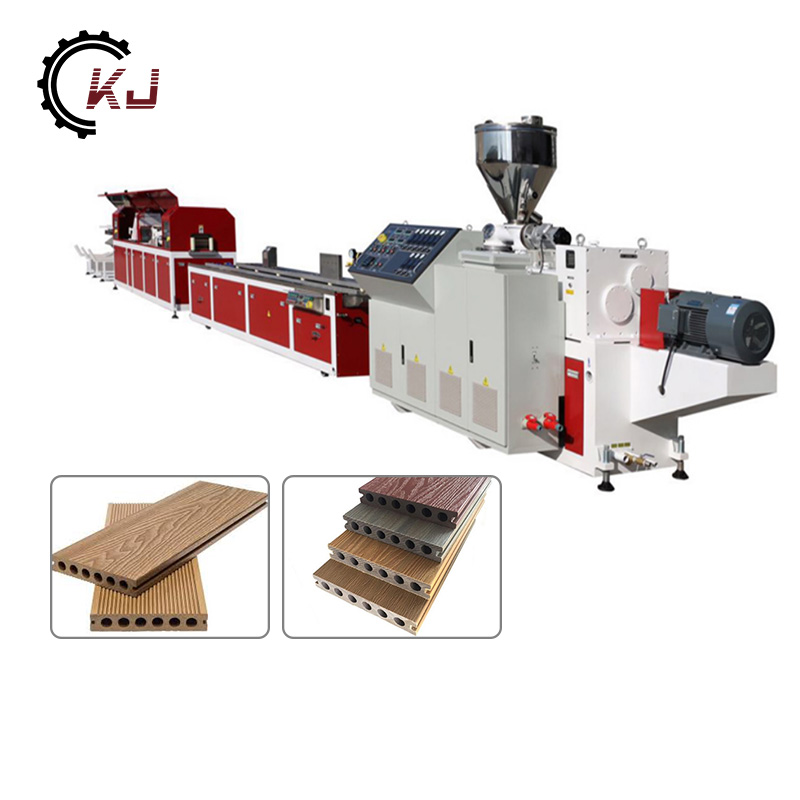

PVC Wall Ceiling Panel Extrusion Line

PVC Wall Ceiling Panel Extrusion Line is used to produce PVC wall panel with width normally from 250mm to 300mm with different section shape and height,the surface of PVC ceiling panel can be trested by double by hot stamping printing,or by lamination,which can make marble,wooden design on surface of product.

Send Inquiry

Product Description

The PVC Wall Ceiling Panel Extrusion Line is designed for manufacturing PVC wall panels typically ranging in width from 250mm to 300mm, featuring various section shapes and heights. These panels undergo surface treatment through methods such as double hot stamping printing or lamination. This treatment enables the creation of marble or wooden designs on the surface of the product, enhancing its aesthetic appeal and versatility.

WPC PVC Ceiling Panel Extruder Machine Line

WPC PVC Ceiling panel Extruder machine line Featrues

The Plastic PVC door panel board extruder making machine is designed for door making with conical double-screw extruder .The raw material of wpc door making machine is composed of wood powder ,pvc powder,CaCo3 powder and other additive. PVC wpc door making machine also can produce other kinds of profile, for example, window, door and door frame, pallet, cladding of outdoor wall, facility of outside park, floor etc just need to change the mould and other machine part.

WPC PVC Ceiling Panel Extruder Machine Line

WPC PVC Ceiling panel Extruder machine line parameter

model	YF600	YF800	YF1000	YF1250
Max. Width of product	600	800	1000	1250
Extruder model	SJZ-80/156	SJZ-80/156	SJZ-92/188	SJZ-92/188
Max extruder capacity(kg/h)	280	280	450	450
Extruder power	55	55	110	132
Cooling water consumption(m3/h)	12	13	15	18
Compressed air consumption(m3/h)	0.5	0.6	0.8	1
