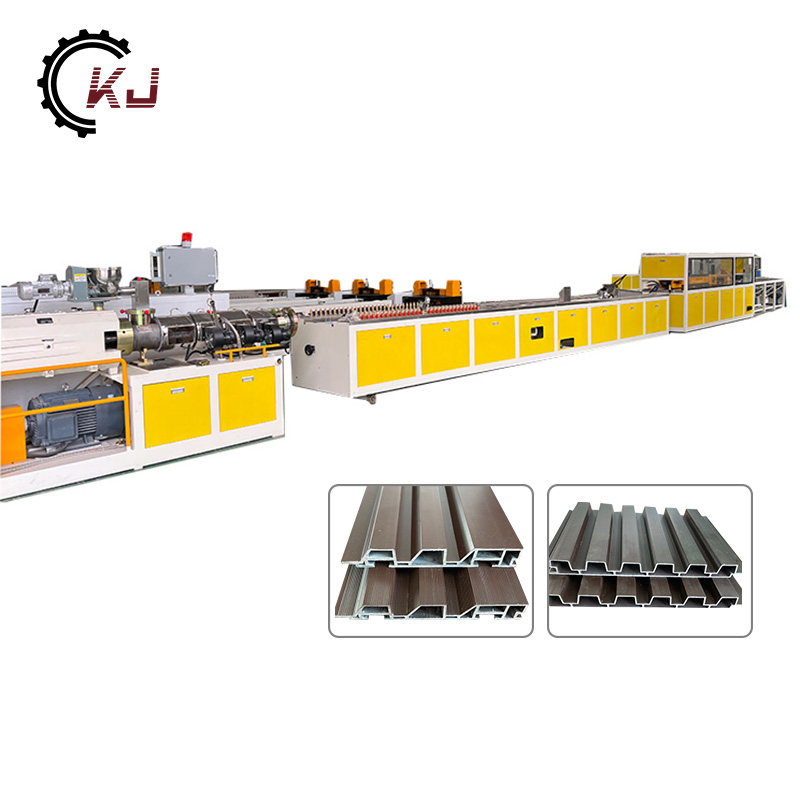

PVC Window and Door Profile Extruder Machine Extrusion Line

PVC window and door profile extruder machine extrusion line making machine PVC Window Profile Machine This line is used to produce PVC window profile by twin screw extruder. This line are consisted of twin screw extruder, extrusionmould, calibration platform; haul-off machine, cutting machine, stacker, etc.

Send Inquiry

Product Description

PVC window and door profile extruder machine extrusion line making machine PVC Window Profile Machine.

This line is used to produce PVC window profile by twin screw extruder. This line are consisted of twin screw extruder, extrusionmould, calibration platform; haul-off machine, cutting machine, stacker, etc.

Raw material is PVC powder.

PVC Window and Door Profile Extruder Machine Extrusion Line

PVC window and door profile extruder machine extrusion line Features and application

PVC Profile Applications

- Window profiles

- Door profiles

- Wood-plastic composite profiles

- Ceiling profile

- Concrete profile

- Panels

- Sidings

- Shutters

- Window sills

- Cornices

- Sealing strip profiles

- Special customer requests

1.The equipment adapts to various formulations, the ratio of calcium can be increased up to 50%-250%,while

the required accessories can be reduced by 30%.

2.The extruder products has an exquisite appearance and uniform plasticization.

3.The PVC profile extrusion machine has auto-alarm functions in case of emergency, through the use of PID controller or PLC controller.

4.the equipment consists of conical twin-screw extruder,vacuum shaping table, tractor, cutter and stacker.

5.device exclusive, to ensure not only extrude PVC ceilings with high quality and output also greatly reduce the cost of production, which get appreciations from customers.

PVC window and door profile extruder machine extrusion line applications

PVC Window and Door Profile Extruder Machine Extrusion Line

Model of PVC window and door profile extruder machine extrusion line

Model	SJSZ48(50)	SJSZ55	SJSZ65	SJSZ80
Main power(kw)	15	22	37	55
Product width(mm)	200-300	200-600	250-600	400-800
Total Power(kw)	34	47	66	90
Output capacity(kg/h)	110-160	120-190	150-210	180-400
Length of line	18.5	20	21.5	24
Air compression(mpa/m3)	0.5	0.6	0.6	0.6
