Wood plastic composite products manufacturing machine

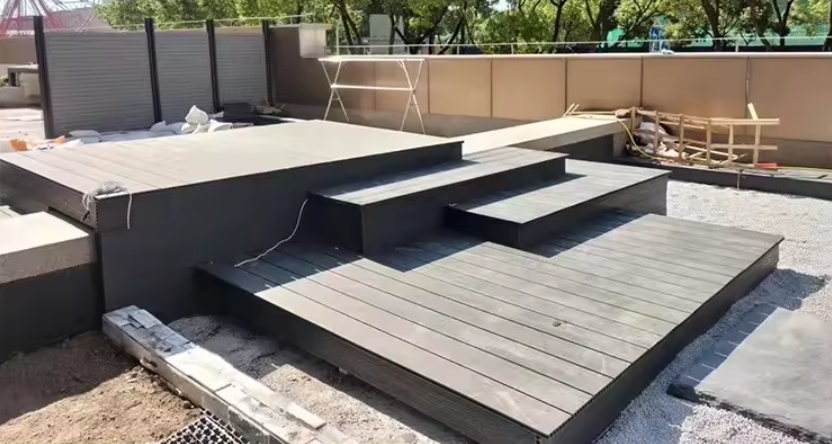

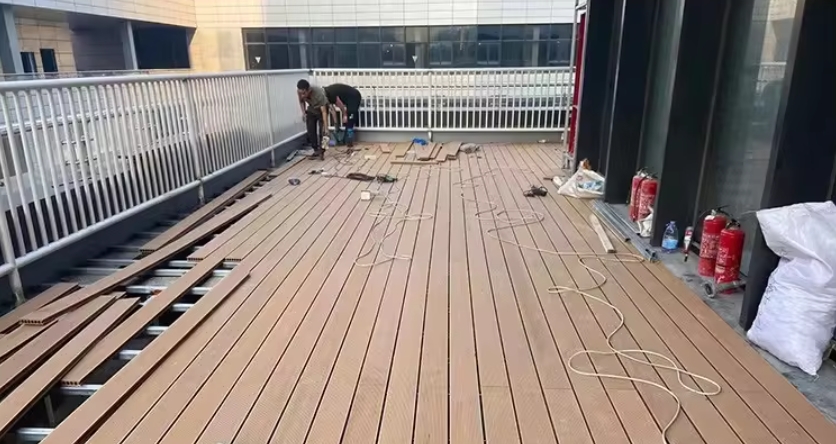

Wood plastic composite products manufacturing machine Wood-plastic floor paneling can avoid the disadvantages of traditional wooden decorative materials, and there will be no problems such as cracking and deformation during use. What’s more, WPC is also flame retardant, making it ideal for indoor and outdoor installations. Wood-plastic flooring can not only make up for the shortcomings of traditional materials, but also extend the service life and reduce the application cost of panels.

Send Inquiry

Product Description

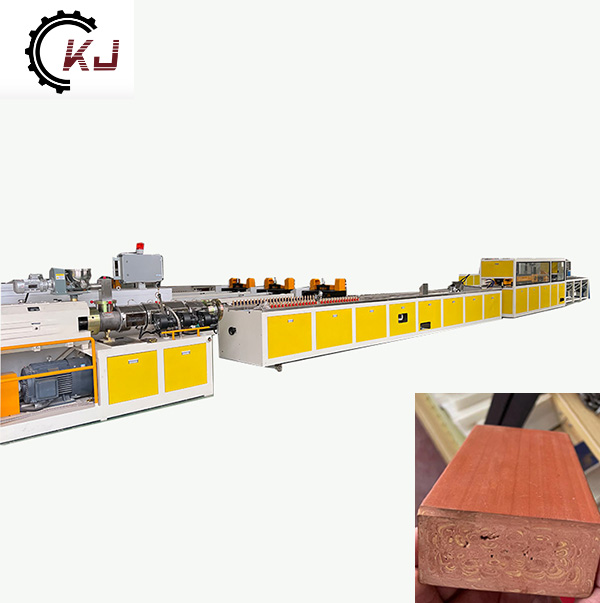

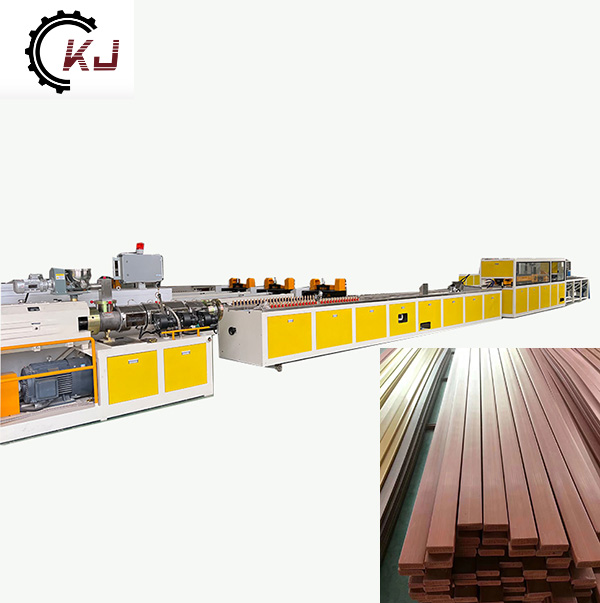

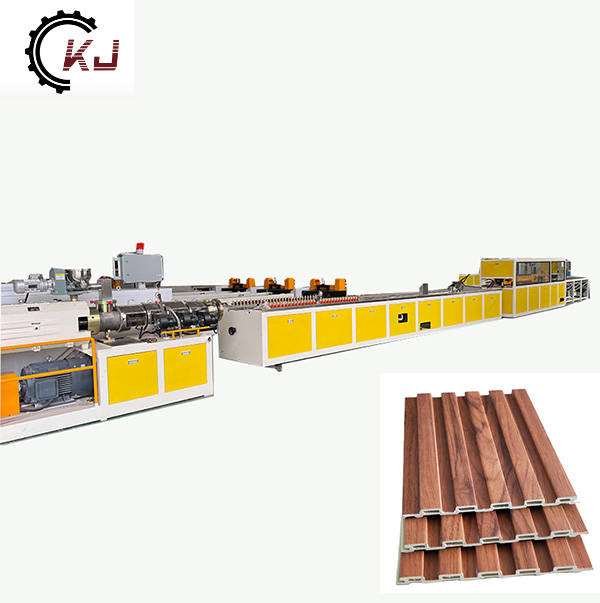

Wood plastic composite products manufacturing machine/pvc Pe Pp Wpc door floor decorative profile sheet extrusion production line

Product Description

1. WPC floor making machine can be used to produce WPC floors, fences, gazebos, benches, trash cans, etc.

2. WPC floor making machine mainly consists of screw feeder, SJSZ65/132 conical twin-screw extruder, mold, vacuum setting table, cutting machine, and stacker.

3. By replacing different molds, the same production line can be used to produce WPC profiles.

final product application

extruder model	Extrude output	main motor power	screw speed	Cooling outside the barrel	screw material	Barrel material
SJZS 51/105	100-150kg/hour	18.5kw; AC motor	38.4 rpm	400w × 3 wind cooling fan	38CrMoALA and through high temperature nitriding treatment. Nitriding depth: 0.5-0.6 Hardness (HV): 740-940 Surface roughness ≤ 0.8um	38CrMoALA and through high temperature nitriding treatment. Nitriding depth: 0.4-0.7 Hardness (HV): 740-940 Surface roughness ≤ 0.8um
SJZS 55/110	180-280kg/h	22 kW; AC motor	38.4 rpm	400w × 3 wind cooling fan
SJZS 65/132	300-350 kg/h	37 kW; AC motor	38.4 rpm	550w × 3-wind cooling fan
SJZS 80/156	400-450kg/h	75 kW; AC motor	40 rpm	550w × 5 wind cooling fan
